Unbranded Ritek G04 White Top 4X DVD-R
| Media Serial Number(s) |
H4-2L19307124938B17 (printed on inside ring)
Some manufacturers switch to a cheaper dye or production facilities after
a while which results in poorer quality media. If your media serial number
differs considerably from the above them you cannot rely on these tests
results for the quality of your media.
|
| |
Media code/Manufacturer ID RITEKG04
Format Capacity 4.37GB(4.69GB)
Book Type DVD-R
Media Type DVD-R
Media Id Code Speed 4.0x 5540KBps
Available Write Descriptor CLV 4.0x 5540KBps
Available Write Descriptor CLV 2.0x 2770KBps
Available Write Descriptor CLV 1.0x 1385KBps
Write Strategy Speed 4.0x 5540KBps
2x Speed OPC beta 06
2x Speed OPC power 0F
2x Write Strategy field 1 12 A8 88 80
2x Write Strategy field 2 88 80 00 00 00 00
4x Speed OPC beta 05
4x Speed OPC power 1B
4x Write Strategy field 1 0E 10 08 09
4x Write Strategy field 2 97 06 0D 0B
4x Write Strategy field 3 00 00 00 00
4x Speed OPC beta multi-pulse 06
4x Speed OPC power multi-pulse 21
4x Write Strategy field 4 13 A8 87 95
4x Write Strategy field 5 99 99 88 80 00 00
4x Write Strategy field 6 00 00 D0 00 00
Data area starting sector 30000h
Data area end sector 22F27Fh
Linear Density 0.267um/bit
Track Density 0.74um/track
Number of Layers 1 |
00000000 00 6C 00 00 01 40 C1 FD 9E D8 52 00 02 65 0E 0B .l...@....R..e..
00000010 FE FF 80 00 03 52 49 54 45 4B 47 00 04 30 34 00 .....RITEKG..04.
00000020 00 00 00 00 05 88 80 00 00 00 01 00 06 06 0F 12 ................ |

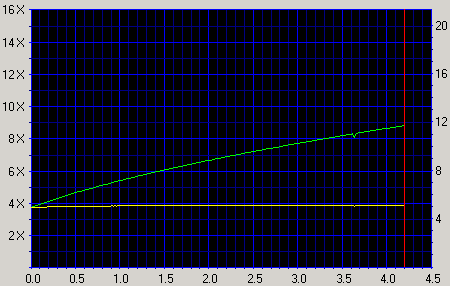

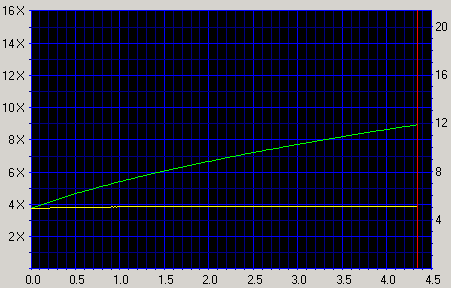

Nero CD Speed in LiteOn 165
Another DVD

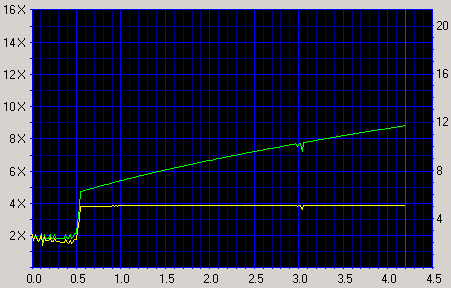

This DVD was written in a NEC 4X drive and appears to have a few problems near
the start of the disc.
The Pioneer written DVDs played very well in a Pioneer 636 and a Ronin P215
DVD player with fast scene access right to the end of the DVD.
